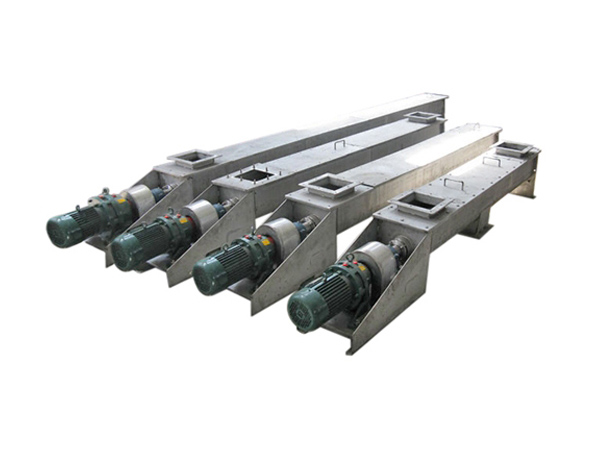

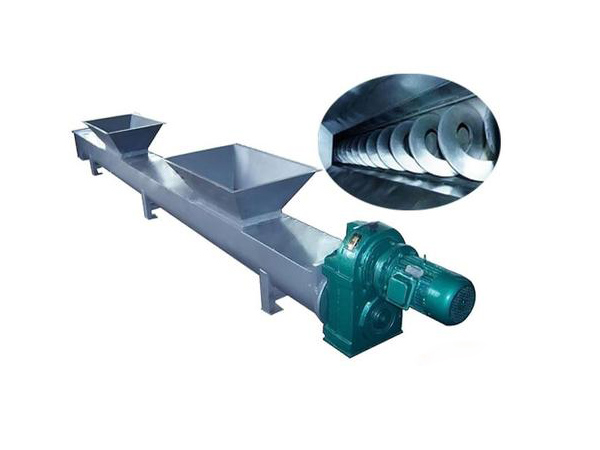

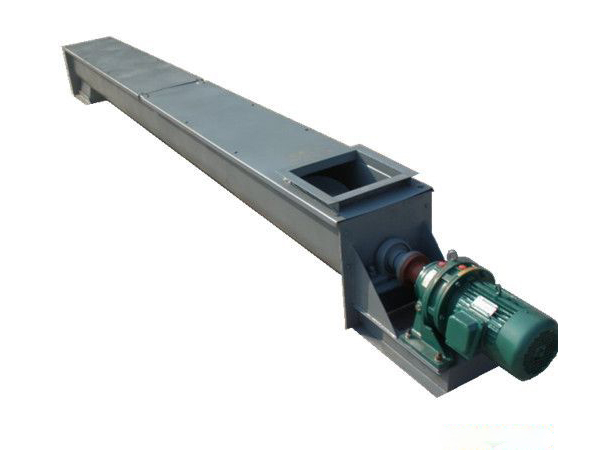

Carbon steel screw conveyor

Category: Screw conveyor

Description:

Screw conveyor overview:

Carbon steel screw conveyor uses revolving screw to move the conveyer material in fixed casing, the bearings of head and tail are moved to shell, hanger bearing adopts sleeve bearing, which have dustproof sealing device, bearing bush usually adopts powder metallurgy,convey concrete adopts felt bushing, hanger shaft and screw shaft are connected by slider.

Working principle of screw conveyor:

screw conveyor

Technoloy parameters of screw conveyor:

screw conveyor
Model
Diameter
(mm)
Rated speed
(r/min)
Reference capacity
(m³/h)
Motor power
(Kw)
Admission biggest gradient
(o)
LS114 114 84-130 1 0.75-18.5 <60
LS133 133 84-130 1.3 0.75-18.5 <60
LS159 159 84-130 5 0.75-18.5 <60
LS219 219 84-130 15 0.75-18.5 <60
LS245 245 84-130 20 0.75-18.5 <60
LS273 273 84-130 30 0.75-18.5 <60
LS315 315 84-130 40 0.75-18.5 <60
LS400 400 60-100 45 0.75-18.5 <60
LS500 500 60-100 70 0.75-18.5 <60
LS600 600 60-100 100 0.75-18.5 <60
