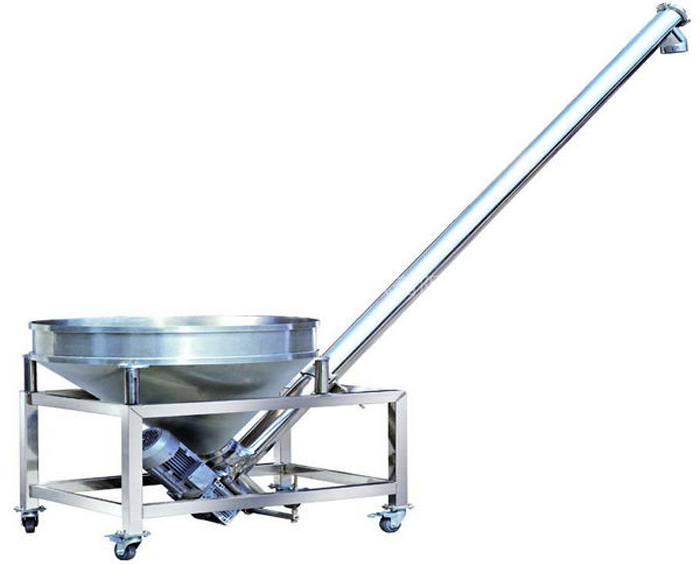

  • hopper screw conveyor
  • 304 stainless steel screw conveyor

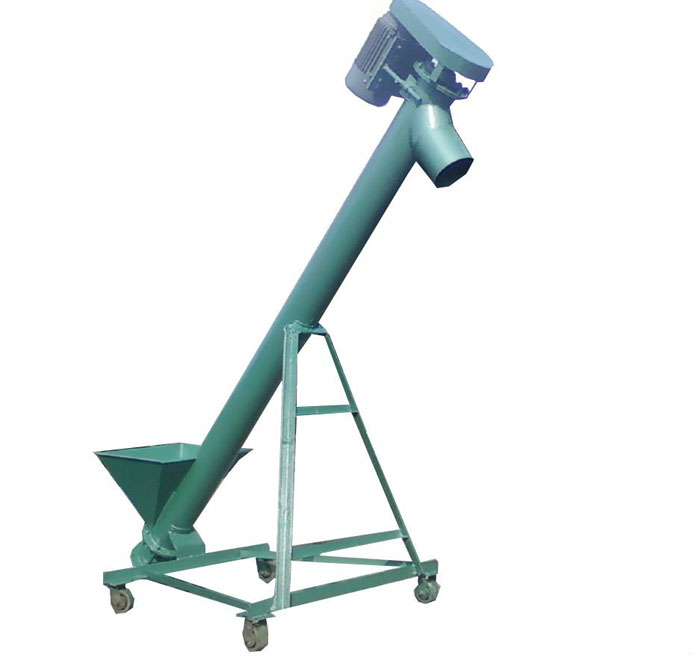

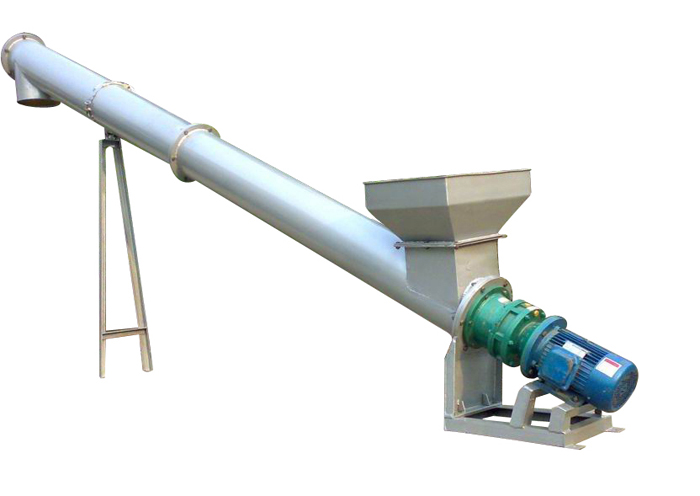

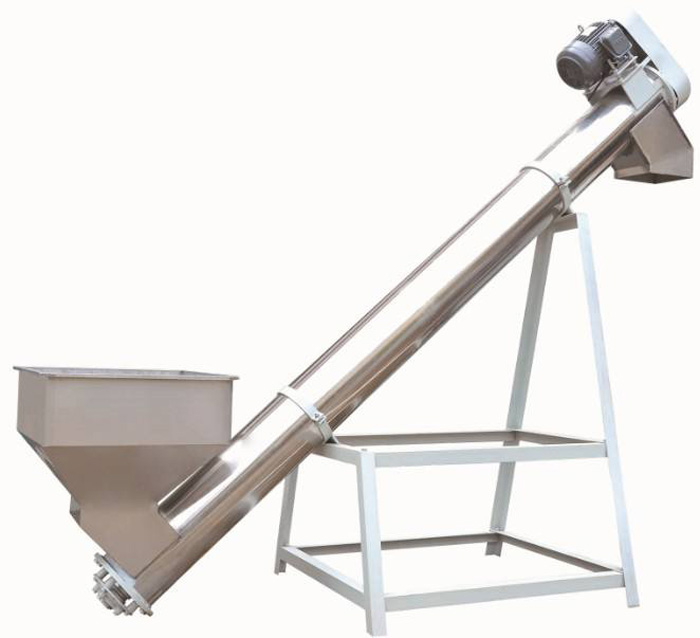

Inclined screw conveyor

Category: Screw conveyor

Description: Inclined screw conveyor can achieve raw material conveying from one place to other placesave more space for factory.

Product Overview:

Inclined Screw conveyor uses revolving screw to move the conveyer material in fixed casing, the bearings of head and tail are moved to shell, hanger bearing adopts sleeve bearing, which have dustproof sealing device, bearing bush usually adopts powder metallurgy,convey concrete adopts felt bushing, hanger shaft and screw shaft are connected by slider.





Working principle:


The working principle of the screw conveyor is that rotating spiral blade push materials for screw conveyor. The acting force that not make the material and the blades of the screw conveyor rotating together is the gravity of the material itself and the friction between screw conveyor casing and material.

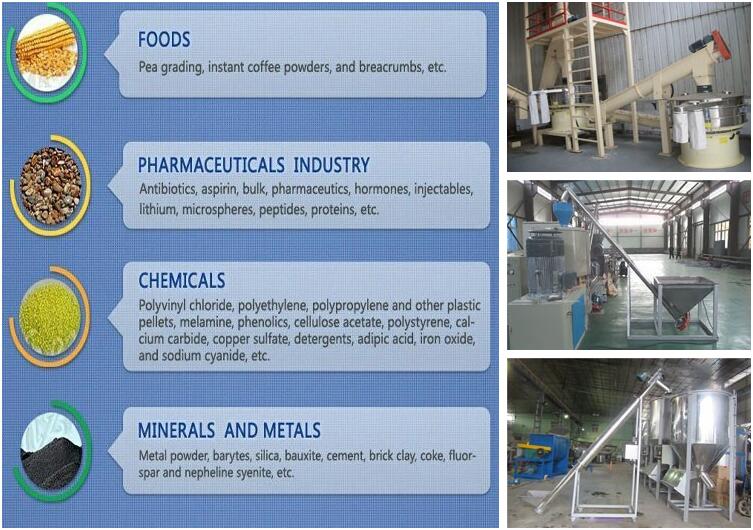

Applies:

Inclined screw conveyor usually used for the food industry,such as sugar,chilli,soybean,rice and all kinds of grains,up to certain height.easy mobility.



Our package:



Our certificate:


Customized design service:

If you are satisfied with our product.As the professional manufacturer of conveying equipments,our engineers can design appropriate machine according to your specifications for your particular manufacturing.Please give me and confrim parameters so that we offer the most suitable machine for you and then quotation.We are pleased to offer you the best product in the most preferential price.

Then we need you offer some infirmation as follows :
1、the name of material that you need deal
2、the features of material (Particle size,Density, Temperature, Humidity,Viscosity,etc.)
3、the capacity you requested.
4、the length and height of the conveyor.
