Screw conveyor overview:

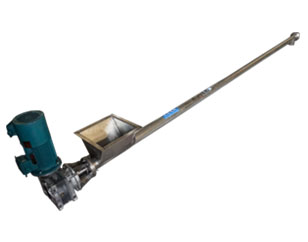

Stainless steel screw conveyor inclined to convey wet salt
Stainless steel screw conveyor uses revolving screw to move the conveyer material in fixed casing, the bearings of head and tail are moved to shell, hanger bearing adopts sleeve bearing, which have dustproof sealing device, bearing bush usually adopts powder metallurgy,convey concrete adopts felt bushing, hanger shaft and screw shaft are connected by slider.
Working principle of screw conveyor:
Feature of screw conveyor:
1. Acid and alkali corrosion resistance: Due to the use of 304 or 316 stainless steel, it has good wear resistance andcorrosion resistance.
2. 200℃ high temperature resistance: 200℃ powder, granule and small block materials can be transported.
3. Prevent rust and avoid pollution to the conveyed materials: 304 or 316 stainless steel is polished, clean andsanitary, will not rust, and the equipment has good airtightness, which can avoid pollution to the conveyed materialsand the environment.
4. Easy to clean: there is a discharge valve at the lower end of the feed inlet, and the screw can be reversed todischarge, so the discharge and cleaning are very convenient
Technoloy parameters of screw conveyor:
| Model | Diameter(mm) | Rated speed(r/min) | Reference capacity(m³/h) | Motor power(Kw) | Admission biggest gradient(o) |
| LS114 | 114 | 84-130 | 1 | 0.75-18.5 | <60 |
| LS133 | 133 | 84-130 | 1.3 | 0.75-18.5 | <60 |
| LS159 | 159 | 84-130 | 5 | 0.75-18.5 | <60 |
| LS219 | 219 | 84-130 | 15 | 0.75-18.5 | <60 |
| LS245 | 245 | 84-130 | 20 | 0.75-18.5 | <60 |
| LS273 | 273 | 84-130 | 30 | 0.75-18.5 | <60 |
| LS315 | 315 | 84-130 | 40 | 0.75-18.5 | <60 |
| LS400 | 400 | 60-100 | 45 | 0.75-18.5 | <60 |
| LS500 | 500 | 60-100 | 70 | 0.75-18.5 | <60 |
| LS600 | 600 | 60-100 | 100 | 0.75-18.5 | <60 |
Scope of application
Stainless steel screw conveyor is widely used in various industries, such as food, condiments, pesticides, veterinarydrugs, building materials, chemical industry, electric power, metallurgy, coal coal, grain and other industries. It issuitable for horizontal or inclined conveying of powder, granular and small pieces of materials. , It is especiallysuitable for the food and pharmaceutical industries, meeting the industry hygiene standards, and can transportmaterials such as flour, feed, pepper powder, medicinal powder and other materials.
Shipment
